Perimeter series
Perimeter VM.i.P
indoor/outdoor
pixel pitch mm 6 - 10
cabinet size mm 1000x800x120 - 1500x800x120 - 1600x955x120
brightness nits 1000 - 6000
ip 40 - 65
indoor/outdoor
pixel pitch mm 6 - 10
cabinet size mm 1000x800x120 - 1500x800x120 - 1600x955x120
brightness nits 1000 - 6000
ip 40 - 65
sports display
safe and shock-resistant
lightweight
easy installation and maintenance
high refresh rate
energy saving
overlapping virtual LED display
camera-friendly
safe and shock-resistant
lightweight
easy installation and maintenance
high refresh rate
energy saving
overlapping virtual LED display
camera-friendly

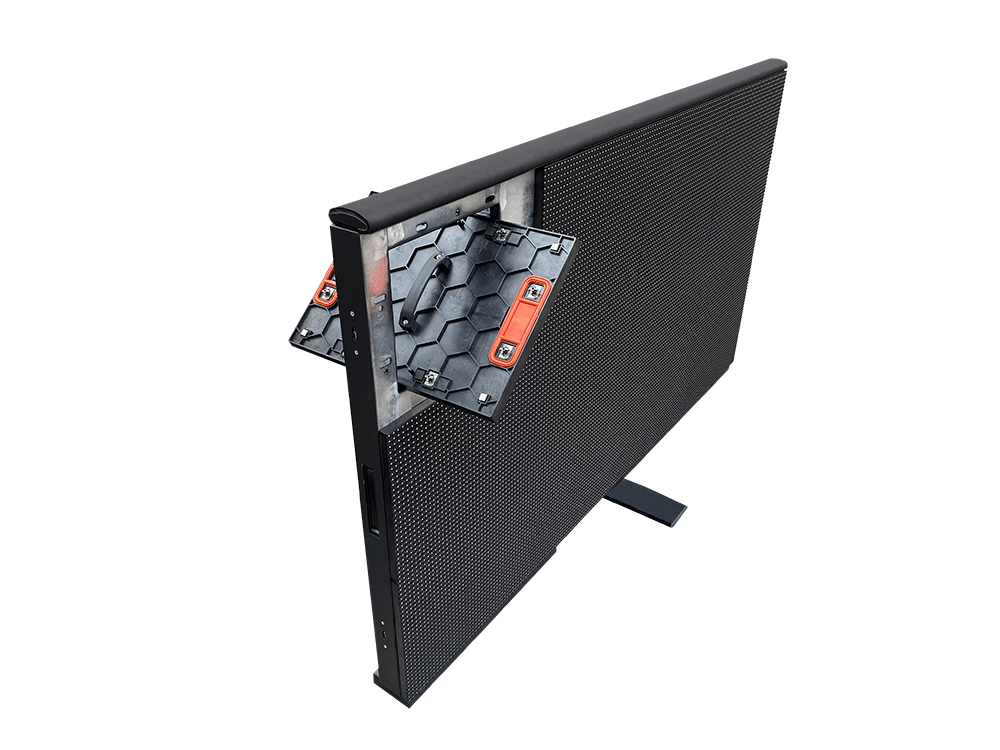

Perimeter is covered with a soft rubber cushion that protects players from injury and the cabinet itself from impacts during sport events and competitions
the aluminium cabinets are lightweight, easy to carry, and feature convenient interlock connections for fast assembly and disassembly
with front and rear accesses, installation, disassembly and maintenance of the module and the power box can be carried out quickly and on-site, without turning off the entire system
the rigid connection of the module provides low failure rates
multiple display with a single screen and real-time broadcasting allow different audiences to see different advertising content on the same screen at the same time
wide viewing angle to improve camera shooting from the side, maximizing advertising revenue
the aluminium cabinets are lightweight, easy to carry, and feature convenient interlock connections for fast assembly and disassembly
with front and rear accesses, installation, disassembly and maintenance of the module and the power box can be carried out quickly and on-site, without turning off the entire system
the rigid connection of the module provides low failure rates
multiple display with a single screen and real-time broadcasting allow different audiences to see different advertising content on the same screen at the same time
wide viewing angle to improve camera shooting from the side, maximizing advertising revenue
Technical specifications
Perimeter series
Perimeter 6.25
pixel pitch mm | 6.25 |
---|---|
LED type | SMD 3in1 |
module size mm | 250x400 |
module resolution px | 40x64 |
density px/sqm | 25600 |
cabinet size mm | 1000/1500x800x120 |
cabinet material | aluminum |
cabinet weight kg | 30 - 60 |
max power consumption w/sqm | 570 |
avg power consumption w/sqm | 228 |
colors million | 16.7 |
grayscale bits | 16 |
color temperature k | adjustable |
frequency refresh hz | 3840 |
brightness nits | 1000 |
ip grade | 40 |
viewing angle | 140° / 120° |
Perimeter 10
pixel pitch mm | 10 |
---|---|
LED type | SMD 3in1 |
module size mm | 400x300 |
module resolution px | 40x30 |
density px/sqm | 10000 |
cabinet size mm | 1600x900x120 |
cabinet material | aluminum |
cabinet weight kg | 30 - 60 |
max power consumption w/sqm | 700 |
avg power consumption w/sqm | 280 |
colors million | 16.7 |
grayscale bits | 16 |
color temperature k | adjustable |
frequency refresh hz | 3840 |
brightness nits | 6000 |
ip grade | 65 |
viewing angle | 140° / 120° |
specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
