Tatami series
Tatami VM.i.RD
Tatami VM.i.DR
Tatami VM.o.FB
indoor/outdoor
pixel pitch mm 1.9 - 2.6 - 2.8 - 3.9 - 4.8
cabinet size mm 500x500x83 - 500x1000x83
brightness nits 800 - 4500
ip indoor 30 - outdoor 65
Tatami VM.i.DR
Tatami VM.o.FB
indoor/outdoor
pixel pitch mm 1.9 - 2.6 - 2.8 - 3.9 - 4.8
cabinet size mm 500x500x83 - 500x1000x83
brightness nits 800 - 4500
ip indoor 30 - outdoor 65
prodotto da noleggio
super leggero e sottile
dotato di protezione
installazione e manutenzione facile e veloce
super leggero e sottile
dotato di protezione
installazione e manutenzione facile e veloce

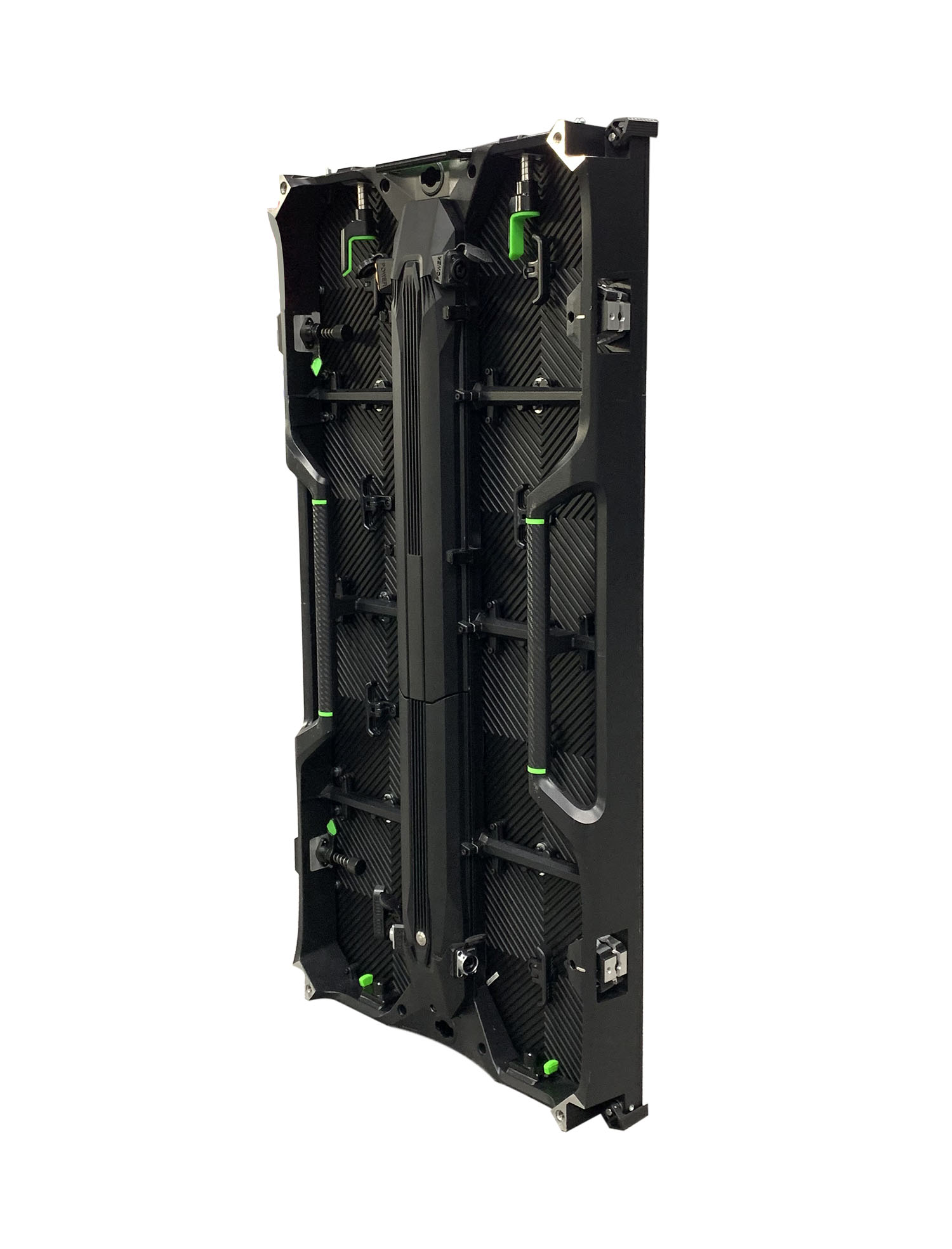

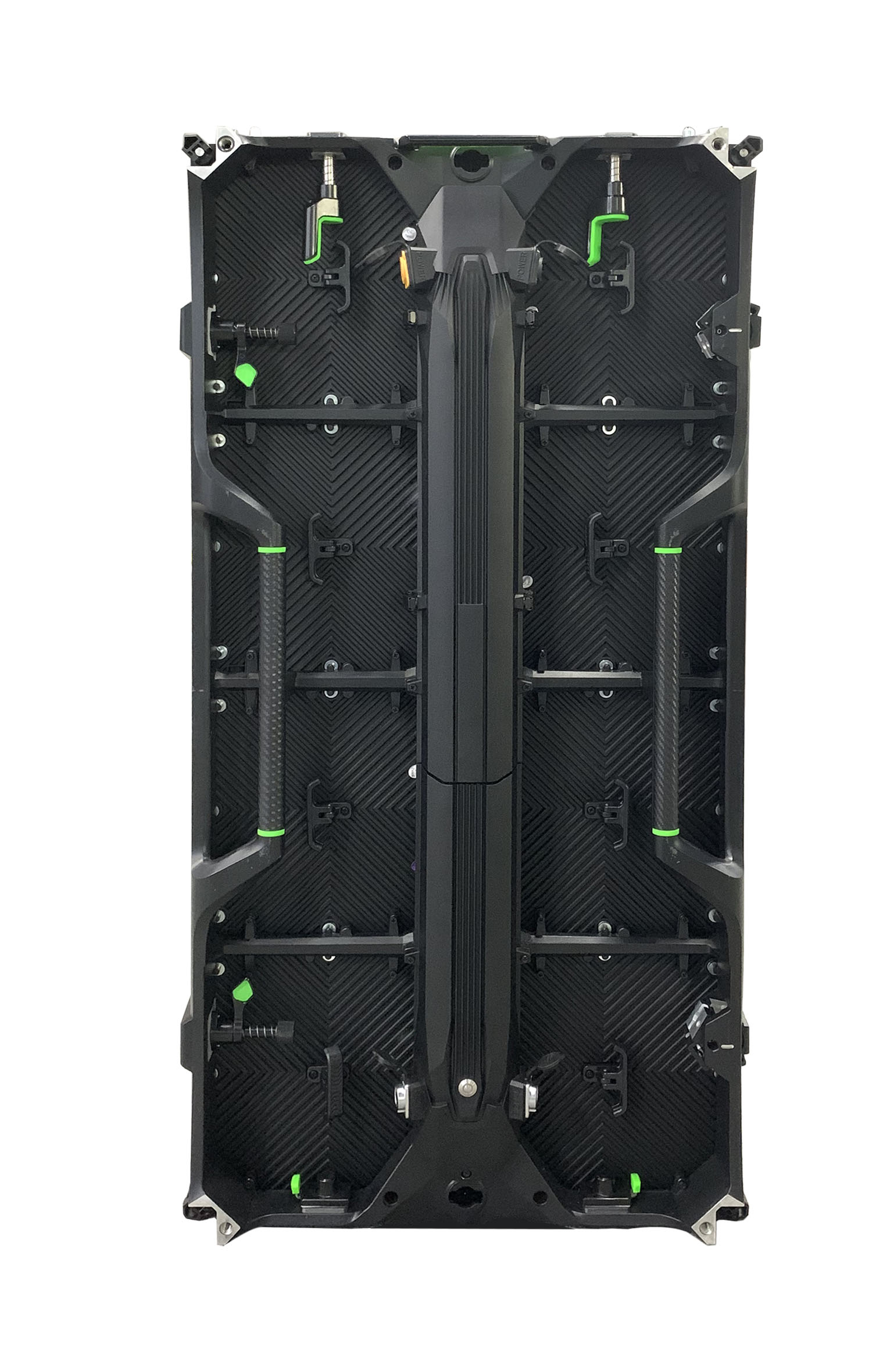

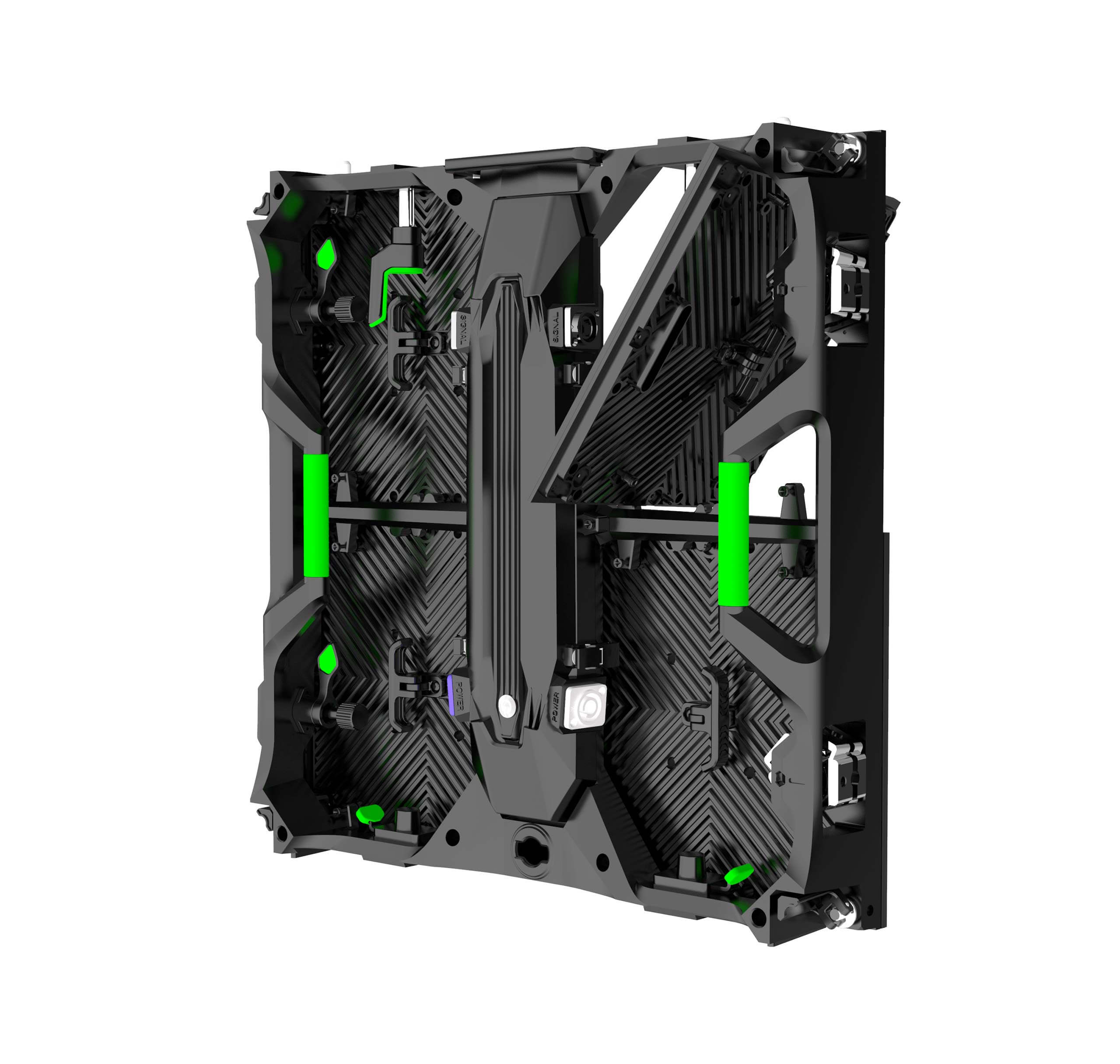

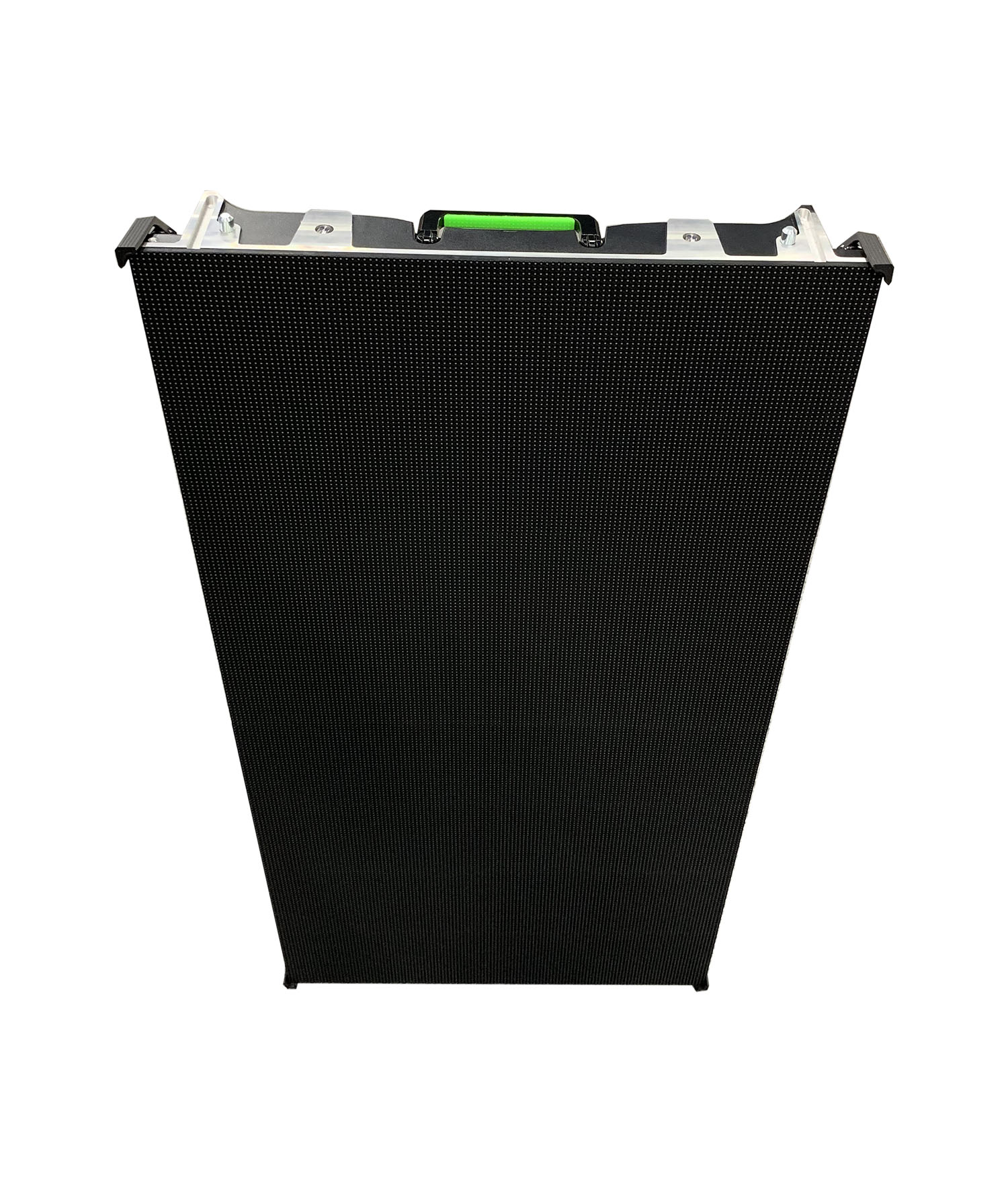

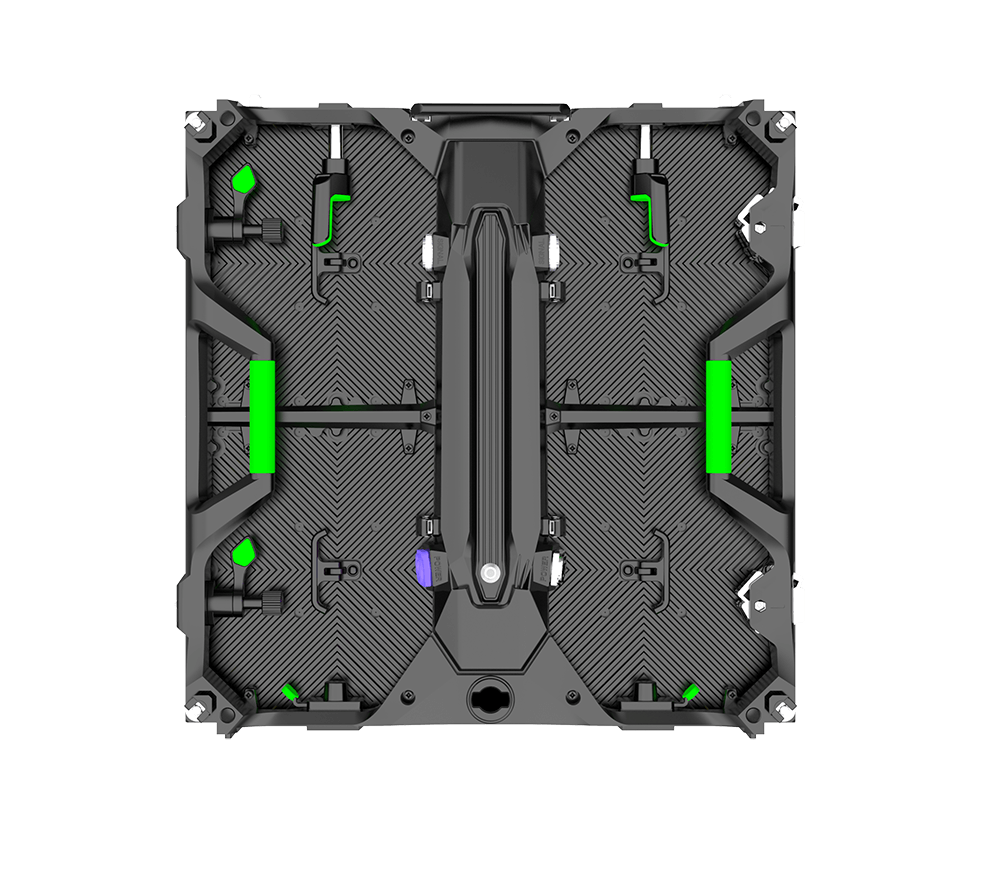

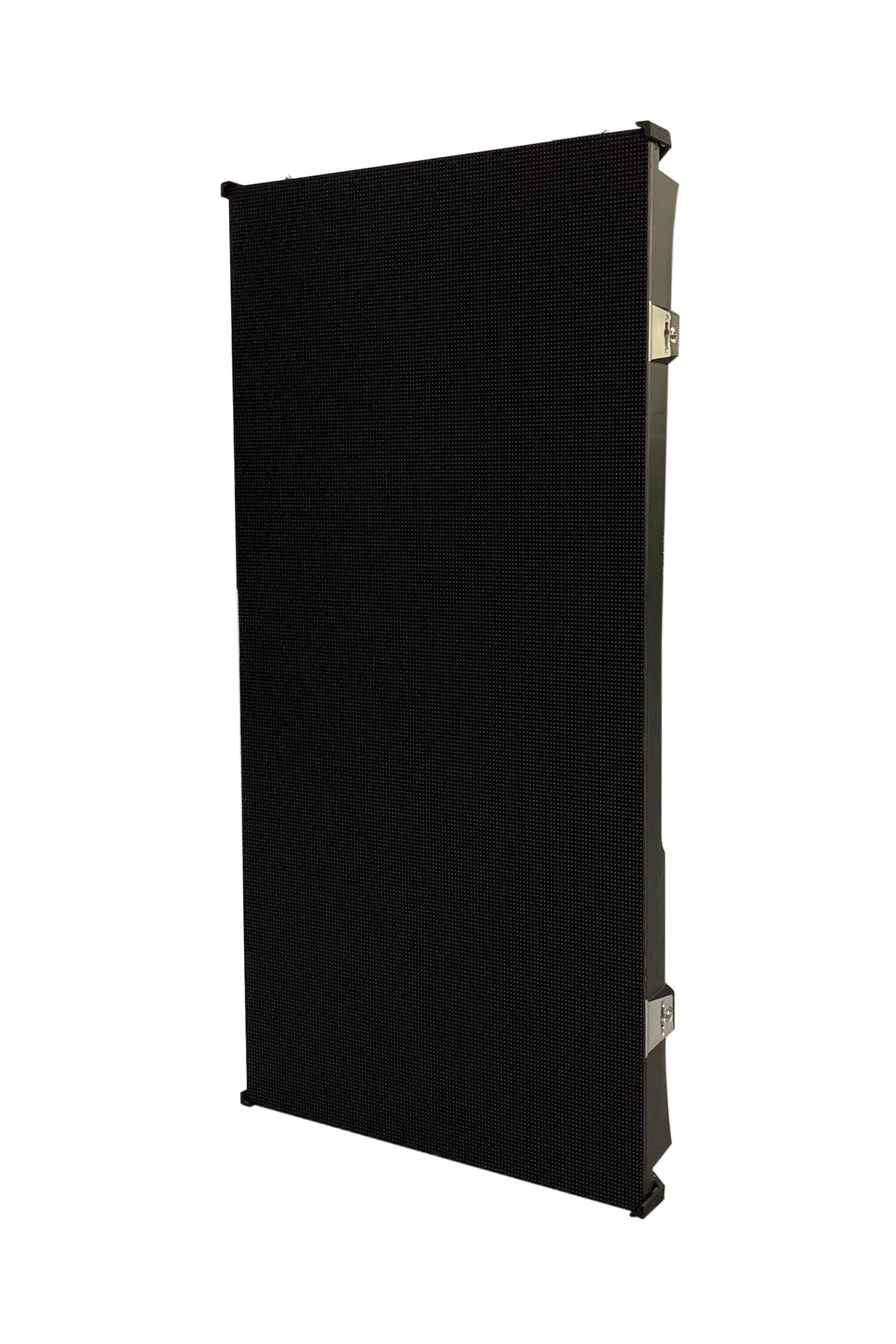

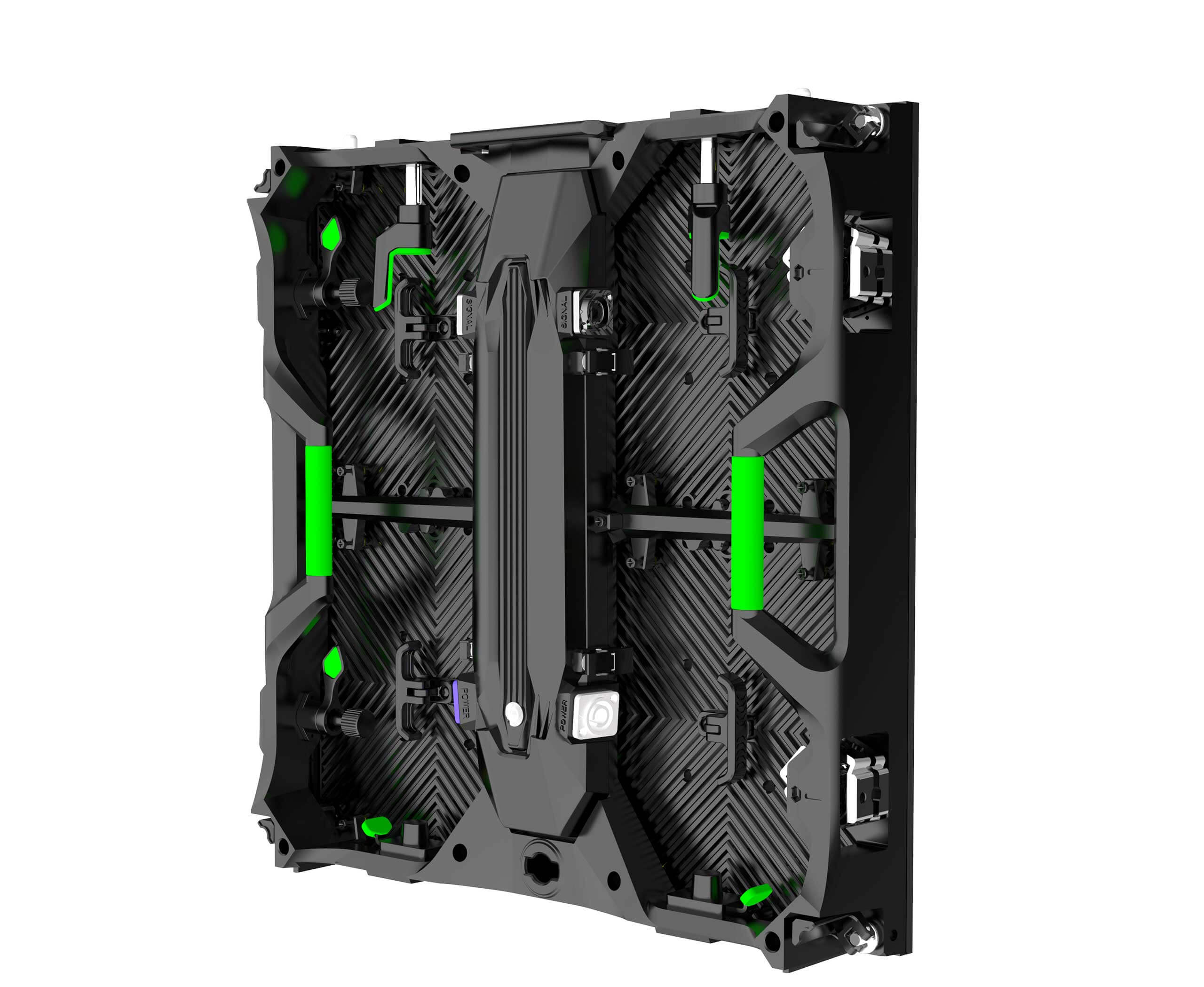

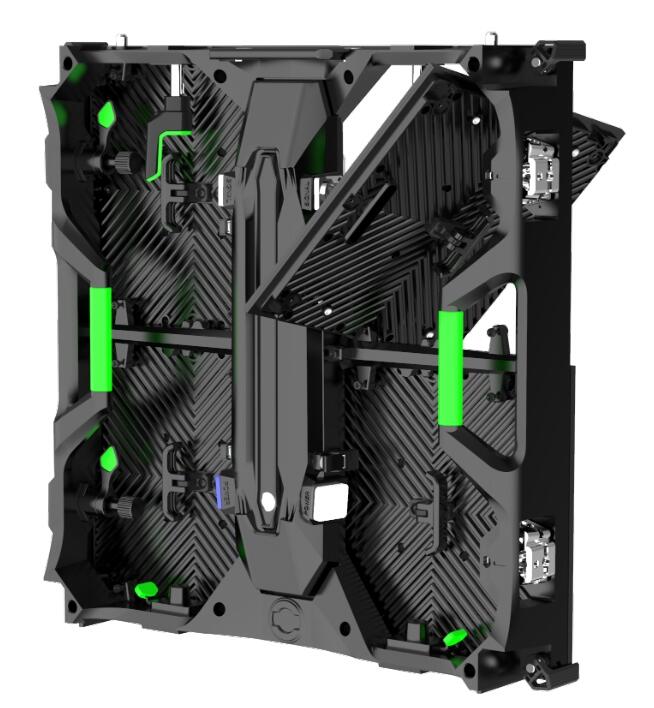

Tatami è un prodotto da noleggio super leggero e sottile, dotato di protezioni degli spigoli per evitare danneggiamenti dovuti agli urti

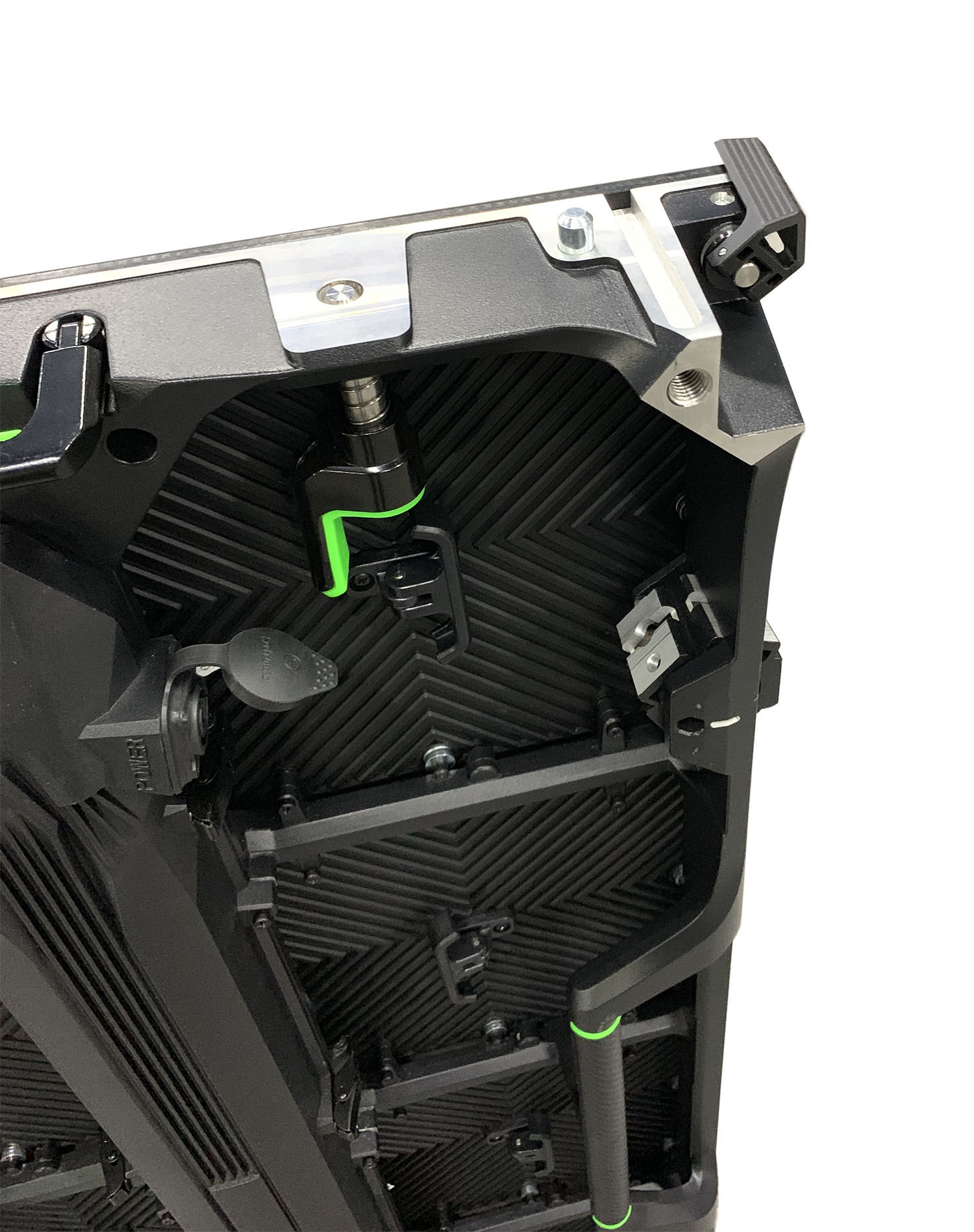

le serrature verticali permettono alta precisione, installazione rapida e possono essere bloccate automaticamente quando si uniscono i cabinet

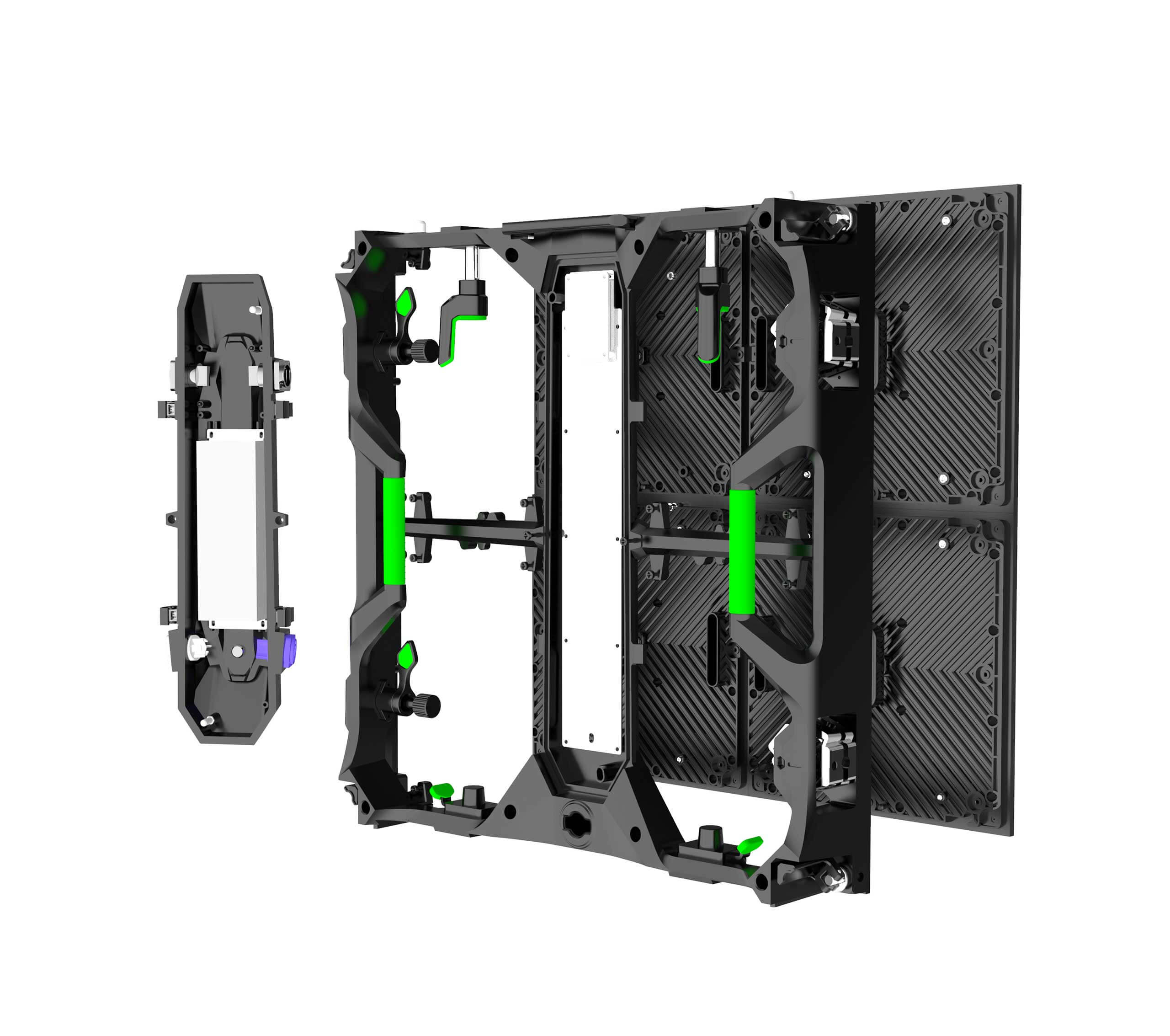

blocco di alimentazione staccabile
predisposto per installazioni curve, concave e convesse, permette installazioni sospese e impilabili
alta luminosità per i modelli da esterno
le serrature verticali permettono alta precisione, installazione rapida e possono essere bloccate automaticamente quando si uniscono i cabinet
blocco di alimentazione staccabile
predisposto per installazioni curve, concave e convesse, permette installazioni sospese e impilabili
alta luminosità per i modelli da esterno
Specifiche tecniche
Tatami VM.i.RD series
Tatami series
| pixel pitch mm | 1.9 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x250 |
| module resolution px | 128x128 |
| density px/sqm | 262144 |
| cabinet size mm | 500x500x83 |
| cabinet material | aluminum |
| cabinet weight kg | 8.6 |
| max power consumption w/sqm | 600 |
| avg power consumption w/sqm | 200 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 800 |
| ip grade | 30 |
| viewing angle | 140° / 140° |
Tatami 2.6
| pixel pitch mm | 2.6 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x250 |
| module resolution px | 96x96 |
| density px/sqm | 147456 |
| cabinet size mm | 500x500x83 |
| cabinet material | aluminum |
| cabinet weight kg | 8.6 |
| max power consumption w/sqm | 400 |
| avg power consumption w/sqm | 120 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 1000 |
| ip grade | 30 |
| viewing angle | 140° / 140° |
Tatami 2.8
| pixel pitch mm | 2.8 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x250 |
| module resolution px | 88x88 |
| density px/sqm | 123904 |
| cabinet size mm | 500x500/1000x83 |
| cabinet material | aluminum |
| cabinet weight kg | 8.6 |
| max power consumption w/sqm | 600 |
| avg power consumption w/sqm | 200 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 1000 |
| ip grade | 30 |
| viewing angle | 140° / 140° |
Tatami 3.9 outdoor
| pixel pitch mm | 3.9 outdoor |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x250 |
| module resolution px | 64x64 |
| density px/sqm | 65536 |
| cabinet size mm | 500x500x83 |
| cabinet material | aluminum |
| cabinet weight kg | 8.6 |
| max power consumption w/sqm | 750 |
| avg power consumption w/sqm | 250 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 3500 |
| ip grade | 65 |
| viewing angle | 140° / 140° |
Tatami 4.8 outdoor
| pixel pitch mm | 4.8 outdoor |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x250 |
| module resolution px | 52x52 |
| density px/sqm | 43264 |
| cabinet size mm | 500x1000x83 |
| cabinet material | aluminum |
| cabinet weight kg | 8.6 |
| max power consumption w/sqm | 750 |
| avg power consumption w/sqm | 250 |
| colors million | 16.7 |
| grayscale bits | 14 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 4500 |
| ip grade | 65 |
| viewing angle | 140° / 140° |
specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
Specifiche tecniche
Tatami VM.i.DR 2.6
Tatami VM.i.DR 2.6
| pixel pitch mm | 2.6 |
|---|---|
| LED type | SMD 1515 |
| module size mm | 500x500 |
| module resolution px | 192x192 |
| density px/sqm | 36834 |
| cabinet size mm | 500x500x83 |
| cabinet material | Aluminium |
| cabinet weight kg | 32 |
| max power consumption w/sqm | 500 |
| avg power consumption w/sqm | 125 |
| colors million | 281 trillion |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840/7680 |
| brightness nits | 900 |
| ip grade | 30 |
| viewing angle | 160° / 160° |
specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
Specifiche tecniche
Tatami VM.o.FB 3.9
Tatami VM.o.FB 3.9
| pixel pitch mm | 3.9 outdoor |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 250x250 |
| module resolution px | 128x128/256 |
| density px/sqm | 65536 |
| cabinet size mm | 500x500/1000x75 |
| cabinet material | aluminum |
| cabinet weight kg | 6.5 |
| max power consumption w/sqm | 650 |
| avg power consumption w/sqm | 200 |
| colors million | 16.7 |
| grayscale bits | 15 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 5000 |
| ip grade | 66 |
| viewing angle | 160° / 90° |
specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
