Landscape 16:9 series

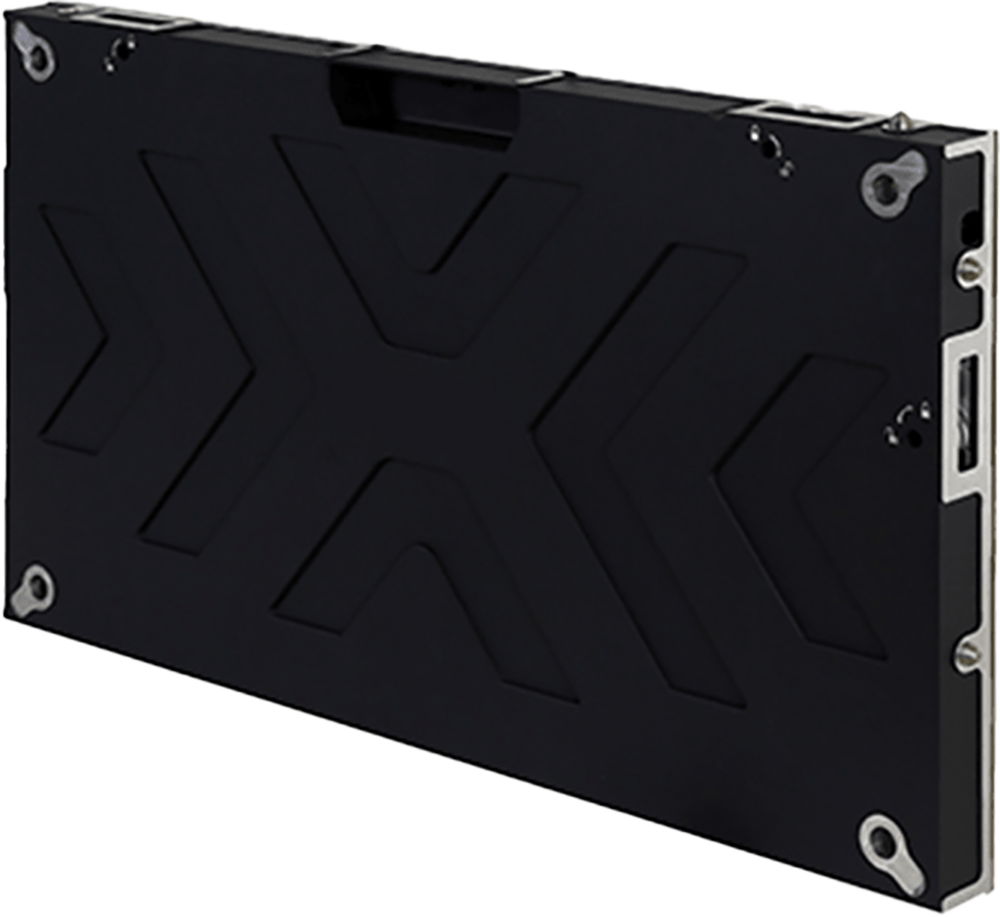

Landscape 16:9 VM.i.Flat
Landscape 16:9 COB
indoor
pixel pitch mm 1.2 - 1.5 - 1.9 - 2.5 COB 0.78 - 0.93 - 1.2 - 1.5
cabinet size mm 600x337.5x63 COB 600x337.5x39.5
brightness nits 600
ip 30 COB 54
Landscape 16:9 COB
indoor
pixel pitch mm 1.2 - 1.5 - 1.9 - 2.5 COB 0.78 - 0.93 - 1.2 - 1.5
cabinet size mm 600x337.5x63 COB 600x337.5x39.5
brightness nits 600
ip 30 COB 54
eccellente effetto visivo in 16:9
2k e 4k
tecnologia GOB
(Glue On Board)
peso ridotto
accesso frontale
no stop show
2k e 4k
tecnologia GOB
(Glue On Board)
peso ridotto
accesso frontale
no stop show
eccellente effetto visivo grazie all’elevata capacità di risoluzione e alle proporzioni 16:9, disponibile in 2k e 4K
il rapporto 16:9 del singolo cabinet è assicurato dalla sua dimensione strategica di 600x337,5 mm
tecnologia GOB (Glue on Board) tecnica di rivestimento della superficie dei moduli LED con uno strato di materiale siliconico che protegge totalmente i LED con pixel pitch molto piccolo (NPP narrow pixel pitch)
il cabinet in alluminio pressofuso dal peso ridotto di 6,5 kg a cabinet (32 kg a mq) con montaggio diretto a parete garantisce un’elevata precisione di giunzione compresa tra 0,01 mm e rigidità consentono un’installazione facile e veloce
i moduli LED, power box e receiving cards con accesso frontale permettono una manutenzione semplice e veloce
no stop show: alimentazione e ridondanza delle receiving cards
il rapporto 16:9 del singolo cabinet è assicurato dalla sua dimensione strategica di 600x337,5 mm
tecnologia GOB (Glue on Board) tecnica di rivestimento della superficie dei moduli LED con uno strato di materiale siliconico che protegge totalmente i LED con pixel pitch molto piccolo (NPP narrow pixel pitch)
il cabinet in alluminio pressofuso dal peso ridotto di 6,5 kg a cabinet (32 kg a mq) con montaggio diretto a parete garantisce un’elevata precisione di giunzione compresa tra 0,01 mm e rigidità consentono un’installazione facile e veloce
i moduli LED, power box e receiving cards con accesso frontale permettono una manutenzione semplice e veloce
no stop show: alimentazione e ridondanza delle receiving cards
Specifiche tecniche
Landscape 16:9 series
Landscape 1.2
| pixel pitch mm | 1.2 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 300x337.5 |
| module resolution px | 240x270 |
| density px/sqm | 640000 |
| cabinet size mm | 600x337.5x63 |
| cabinet material | aluminum |
| cabinet weight kg | 6.5 |
| max power consumption w/sqm | 896 |
| avg power consumption w/sqm | 295 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 600 |
| ip grade | 30 |
| viewing angle | 160° / 160° |
Landscape 1.5
| pixel pitch mm | 1.5 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 300x337.5 |
| module resolution px | 192x216 |
| density px/sqm | 409600 |
| cabinet size mm | 600x337.5x63 |
| cabinet material | aluminum |
| cabinet weight kg | 6.5 |
| max power consumption w/sqm | 896 |
| avg power consumption w/sqm | 295 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 600 |
| ip grade | 30 |
| viewing angle | 160° / 160° |
Landscape 1.9
| pixel pitch mm | 1.8 |
|---|---|
| LED type | SMD 3in1 |
| module size mm | 300x337.5 |
| module resolution px | 160x180 |
| density px/sqm | 284444 |
| cabinet size mm | 600x337.5x63 |
| cabinet material | aluminum |
| cabinet weight kg | 6.5 |
| max power consumption w/sqm | 896 |
| avg power consumption w/sqm | 295 |
| colors million | 16.7 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 3840 |
| brightness nits | 600 |
| ip grade | 30 |
| viewing angle | 160° / 160° |
Landscape COB 0.78
| pixel pitch mm | 0.78 |
|---|---|
| LED type | COB |
| module size mm | 150x168.75 |
| module resolution px | 192x216 |
| density px/sqm | 1638400 |
| cabinet size mm | 600x337.5x39.5 |
| cabinet material | aluminium |
| cabinet weight kg | 6 |
| max power consumption w/sqm | 350 |
| avg power consumption w/sqm | 75 |
| colors million | 10.000:1 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 600 |
| ip grade | 54 |
| viewing angle | 160° / 160° |
Landscape COB 0.93
| pixel pitch mm | 0.93 |
|---|---|
| LED type | COB |
| module size mm | 150x168.75 |
| module resolution px | 168x180 |
| density px/sqm | 1137777 |
| cabinet size mm | 600x337.5x39.5 |
| cabinet material | aluminium |
| cabinet weight kg | 6 |
| max power consumption w/sqm | 350 |
| avg power consumption w/sqm | 75 |
| colors million | 10.000:1 |
| grayscale bits | 16 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 600 |
| ip grade | 54 |
| viewing angle | 160° / 160° |
Landscape COB 1.2
| pixel pitch mm | 1.2 |
|---|---|
| LED type | COB |
| module size mm | 150x168.75 |
| module resolution px | 120x135 |
| density px/sqm | 640000 |
| cabinet size mm | 600x337.5x39.5 |
| cabinet material | aluminium |
| cabinet weight kg | 6 |
| max power consumption w/sqm | 340 |
| avg power consumption w/sqm | 10.000:1 |
| colors million | 16.7 |
| grayscale bits | 14 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 600 |
| ip grade | 54 |
| viewing angle | 160° / 160° |
Landscape COB 1.5
| pixel pitch mm | 1.5 |
|---|---|
| LED type | COB |
| module size mm | 150x168.75 |
| module resolution px | 96x108 |
| density px/sqm | 409600 |
| cabinet size mm | 600x337.5x39.5 |
| cabinet material | aluminium |
| cabinet weight kg | 6 |
| max power consumption w/sqm | 340 |
| avg power consumption w/sqm | 75 |
| colors million | 10.000:1 |
| grayscale bits | 14 |
| color temperature k | adjustable |
| frequency refresh hz | 1920 - 3840 |
| brightness nits | 600 |
| ip grade | 54 |
| viewing angle | 160° / 160° |
specification subjected to improvement without prior notice, above details only for reference - the products shown in the images are for illustrative purposes only - version february 2021 - all rights reserved and belong to videomobile srl
